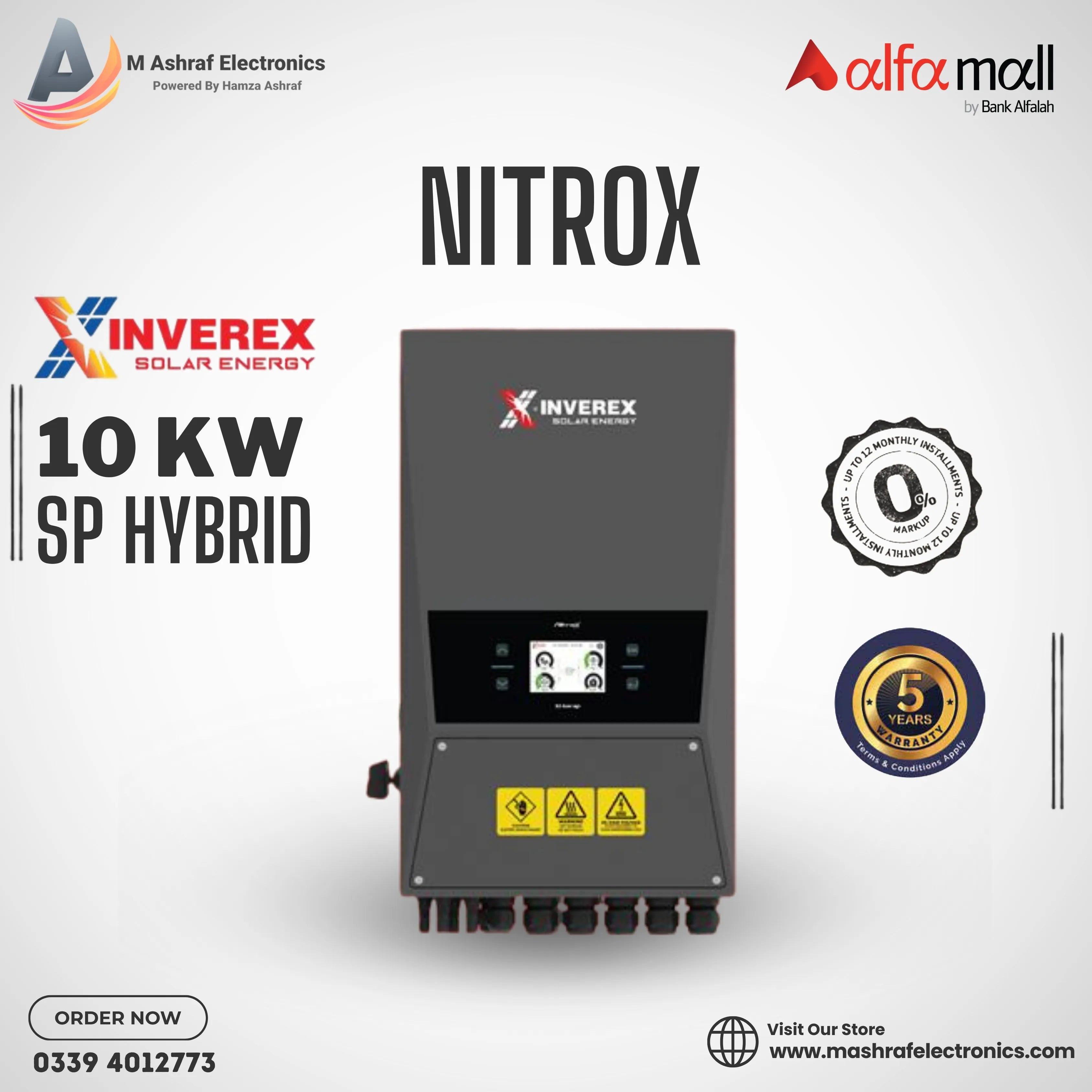

INVEREX NITROX HYBRID 10 KW SP - 5G IP65 PV16000 5 Year Warranty M Ashraf Electronics - M Ashraf Electronics
INVEREX NITROX HYBRID 10 KW SP - 5G IP65 PV16000 5 Year Warranty M Ashraf Electronics - M Ashraf Electronics

INVEREX NITROX HYBRID 10 KW SP-5G IP65 PV16000 5 Year Warranty M Ashraf Electronics

Model  Battery Type  INVEREX HYBRID 10 KW SP-5G  Lead-acid or Lithium-ion  Battery Voltage Range (V)  40-60  Max....
Vendor: M Ashraf Electronics
Availability: In Stock
Product Type: Solar Inverter
Rs.472,000.00
Rs.472,000.00
Please hurry! Only 10 left in stock
Please Select Cod For Cash/Credit Card Or BNPL For Installment:: COD
Subtotal: Rs.472,000.00
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over Rs 25000

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.
INVEREX NITROX HYBRID 10 KW SP - 5G IP65 PV16000 5 Year Warranty M Ashraf Electronics - M Ashraf Electronics

INVEREX NITROX HYBRID 10 KW SP-5G IP65 PV16000 5 Year Warranty M Ashraf Electronics

Rs.472,000.00
INVEREX NITROX HYBRID 10 KW SP - 5G IP65 PV16000 5 Year Warranty M Ashraf Electronics - M Ashraf Electronics

INVEREX NITROX HYBRID 10 KW SP-5G IP65 PV16000 5 Year Warranty M Ashraf Electronics

Rs.472,000.00
Please Select Cod For Cash/Credit Card Or BNPL For Installment:: COD
Description
Description
x

Model  Battery Type  INVEREX HYBRID 10 KW SP-5G  Lead-acid or Lithium-ion  Battery Voltage Range (V)  40-60  Max. Charging Current (A)  210  Max. Discharging Current (A) Charging Strategy for Li-ion Battery  210 Self-adaption to BMS  Number of Battery Input  1  PV String Input Data Max. PV Input Power (W)  16000  Max. PV Input Voltage (V)  500  Start-up Voltage (V) MPPT Voltage Range (V)  125 150-425 370  Rated PV Input Voltage (V) Max. Operating PV Input Current (A)  32+32  Max. Input Short-Circuit Current (A)  48+48  No. of MPP Trackers/ No. of Strings MPP Tracker  2/2+2  AC Input/Output Data Rated AC Input/Output Active Power (W)  10000  Max. AC Input/Output Apparent Power (VA)  11000  Rated AC Input/Output Current (A)  45.5/43.5  Max. AC Input/Output Current (A)  50/47.9  Max. Continuous AC Passthrough (grid to load) (A) Peak Power (off-grid) (W)  50 2 times of rated power, 10s  Power Factor Adjustment Range  0.8 leading to 0.8 lagging  Rated Input/Output Voltage/Range (V)  220/230  Rated Input/Output Grid Frequency/Range(Hz) Grid Connection Form Total Current Harmonic Distortion THDi   Surge Protection Level  DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level TYPE II(DC), TYPE II(AC)
